• Country
• Great Britain (UK)

• Manufacturer / Brand
• Black Star; St. Ives

• Year
• 1990 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 231914

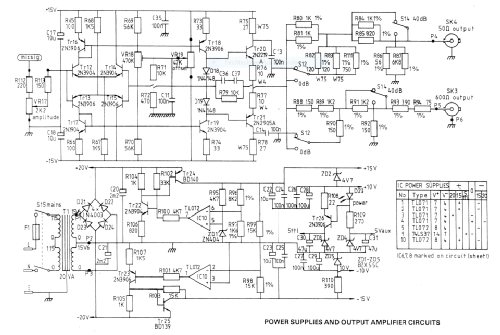

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Jupiter 2000 - Function Generator - Black Star; St. Ives

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 220 x 100 x 230 mm / 8.7 x 3.9 x 9.1 inch

• Notes

• 0,2Hz - 2 MHz.

• Author
• Model page created by Daniel Bailey. See "Data change" for further contributors.
