• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1974 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 147563

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Powered by external power supply or a main unit. / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org

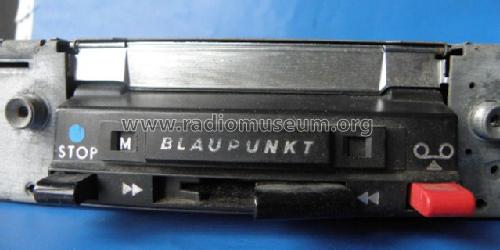

• Model: ACR-Berlin 7.633.905 ab F 180001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• Aufnahme Aussteuerung vollautomatisch, Kassettenauswurf: vollatomatisch bei Bandende.

• Mentioned in
• Original Blaupunkt Service Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
