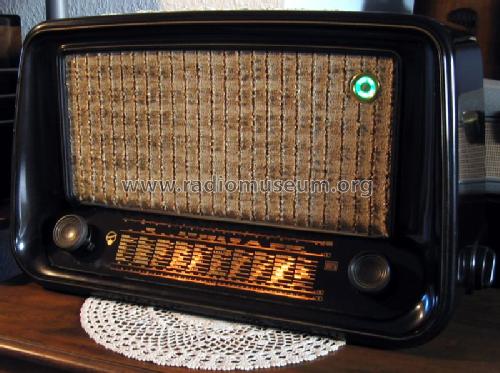

Blaupunkt Ideal: F511UP [Radio] ID = 395291 580x364
|
|
||||
|
alternative name
|
 |
||||
|---|---|---|---|---|---|
Brand |
Rotstern | ||||
| Year: 1951/1952 | Type: Radio - or past WW2 tuner | ||||
| Valves / Tubes | 7: UCH42 UF80 UBF15 UAA91 UM11 UL11 UY41 U2410PL UB10000 |
| Principle | Super-Heterodyne (Super in general); IF-Freq 473/10,7 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM. |
| Details | |
| Power type and voltage | AC/DC-set / 110; 125; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch |
| Power out | |
| from Radiomuseum.org | Model: F511UP - Blaupunkt Ideal |
| Material | Moulded (Bakelite or Plastics) |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 580 x 350 x 250 mm / 22.8 x 13.8 x 9.8 inch |
| Notes | Die UF80 wird 3-fach ausgenutzt: UKW-HF + UKW-ZF + NF. Achtung: Der Anschluß für den zweiten Lautsprecher liegt auf der Primärseite des Ausgangstransformators, und führt daher Hochspannung. |
| Net weight (2.2 lb = 1 kg) | 12 kg / 26 lb 6.9 oz (26.432 lb) |
| Collectors' prices | 3 Collector prices (for members Radiomuseum.org) |
| External source of data | Wiesmüller |
| Source of data | Lange Schaltungen der Funkindustrie / |
| Literature/Schematics (1) | -- Original-techn. papers. |
