• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27352

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

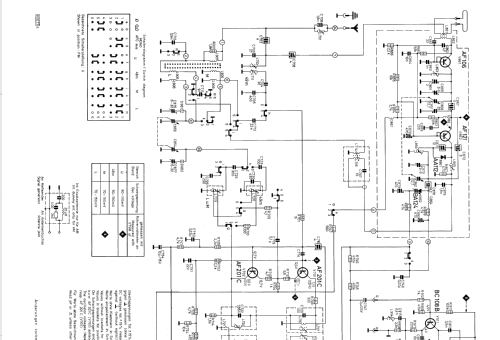

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• AF106 AF121 BC108 BC108 BC108 BC178 AF201 AF201 AF201 AF201 BC108 AC151 AC187 AC188 BC108 AC151 AC187 AC188 AD148 BA124 AA112 AA119 ZD15 BYX36 BYX36

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Amazonas Stereo 7.628.770 - Blaupunkt Ideal, Berlin,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1125 x 765 x 345 mm / 44.3 x 30.1 x 13.6 inch

• Notes

• Rundfunk-Spezialchassis = 7.628.140, Vollstereo, NF-Verstärker mit zwei Endstufen je 3,5 W;
  Phono-Chassis = PE 2001.

  gelistete Halbleiter-Dioden teilweise mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969

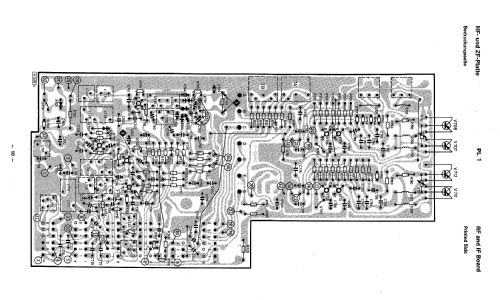

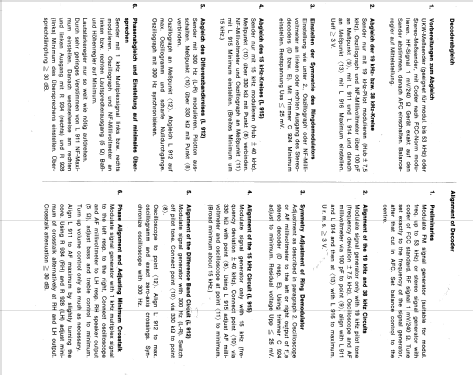

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 3525 models, 3214 with images and 2320 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
