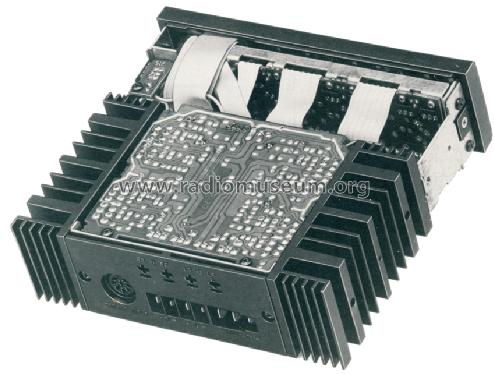

BEA-108 7.607.577.510; Blaupunkt Ideal (ID = 1312874) Ampl/Mixer BEA-108 7.607.577.510; Blaupunkt Ideal (ID = 1312875) Ampl/Mixer
BEA-108 7.607.577.510; Blaupunkt Ideal (ID = 1312876) Ampl/Mixer
Use red slider bar for more.
BEA-108 7.607.577.510; Blaupunkt Ideal (ID = 223469) Ampl/Mixer
Blaupunkt Ideal: BEA-108 7.607.577.510 [Ampl/Mixer] ID = 223469 933x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model BEA-108 7.607.577.510, Blaupunkt (Ideal)

Country:  Germany
Manufacturer / Brand:  Blaupunkt (Ideal)
alternative name

Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
Brand
Rotstern
Year: 1987/1988 Type: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 1: BC548 LA3607 LA3607 LB1409 LB1409 TDA1515 TDA1515 TDA1515 TDA1515
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: BEA-108 7.607.577.510 - Blaupunkt Ideal
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 150 x 44 x 130 mm / 5.9 x 1.7 x 5.1 inch
Notes Equalizer-Amplifier 4× 25 Watt für Kfz-Einbau.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
