• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1960–1963

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 24072

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECC86

• Main principle
• RF Converter/Adapter (not voltage converter)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

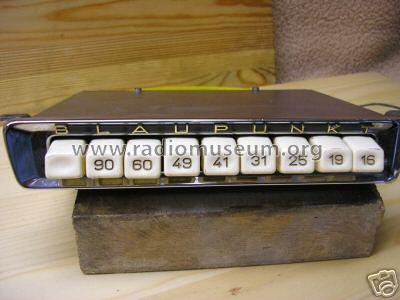

• Model: Kurzwellen-Vorsatzgerät KV810 ab D 540001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 183 x 50 x 149 mm / 7.2 x 2 x 5.9 inch

• Notes
• Vorsatzgerät für 8 KW-Bänder die auf MW transponiert werden; Sendereinstellung erfolgt am Hauptempfänger.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 100.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62
