• Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 504
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF with regeneration; 2 Special; 1 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

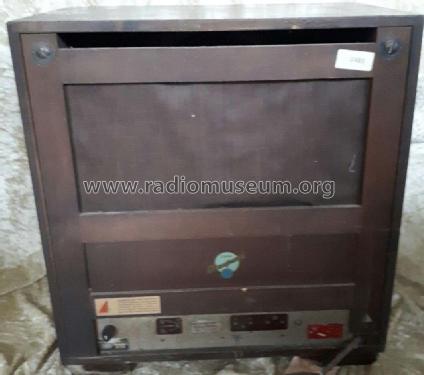

  • Model: LW4004 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 410 x 415 x 250 mm / 16.1 x 16.3 x 9.8 inch
  • Notes
  • Preis ohne Röhren, zusätzlich Röhrensatz Preis: 60,50 RM

    Der Katalog Radio Schnorr 1934 nennt abweichend einen Preis von 260,50 ohne Röhren. Katralog Prohaska und der Hersteller-Prospekt geben übereinstimmend 200,-RM o.R. an.

  • Price in first year of sale
  • 200.00 RM +
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Mentioned in
  • Funk Bastler (Funkbastler 1933, Heft 36, Seite 573)
  • Literature/Schematics (1)

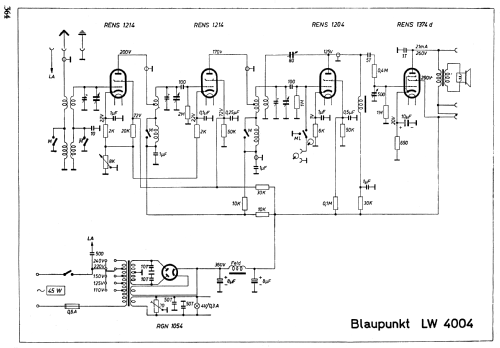

  • -- Schematic (OTO-Schaltungen)

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Blaupunkt Ideal,: LW4004

Threads: 1 | Posts: 3

I found a complete description (in Flemish) in the very first number of the magazine "de Radio Revue", dated august 1933, as well as a publicity of the same set, brand name "POINT BLEU", meaning Blaues Punkt in German! Selling price was 2950 Bef. The text explains also that a version for battery supply 110 V till 220 Volts was available type number LG 4004.

Attachments

Georges Van Campenhout † 28.4.22, 03.May.05

Weitere Posts (3) zu diesem Thema.
