• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1988 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 146408

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

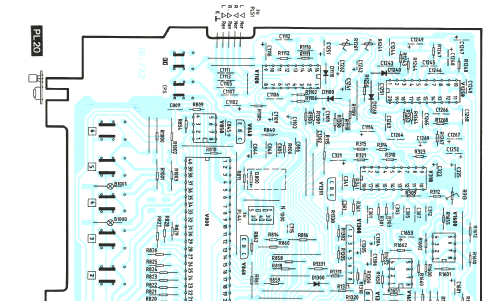

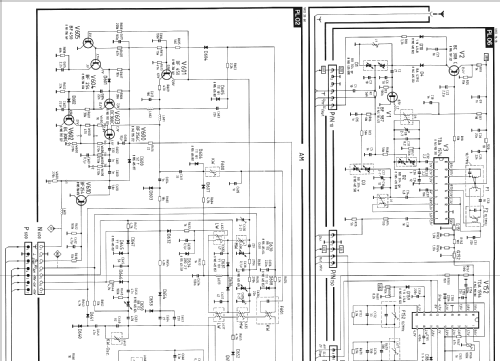

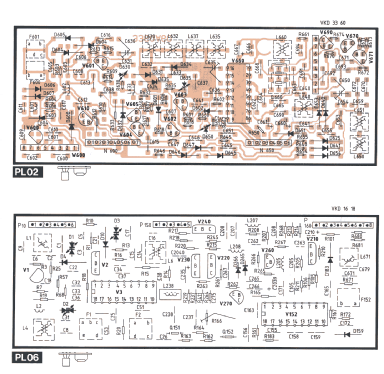

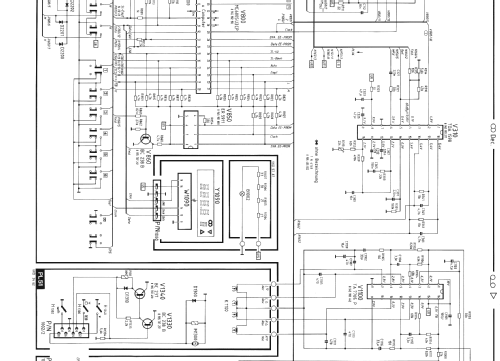

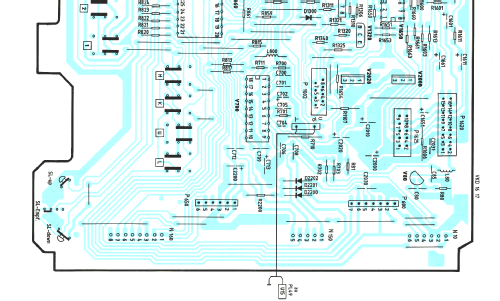

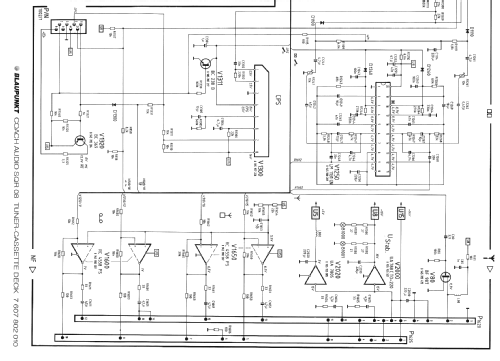

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

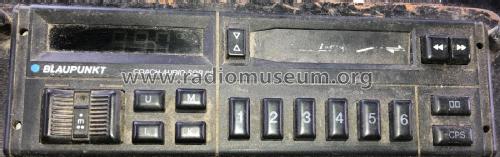

• Model: Tuner Cassettendeck SQR 08 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Notes
• 13 IC.

• Mentioned in

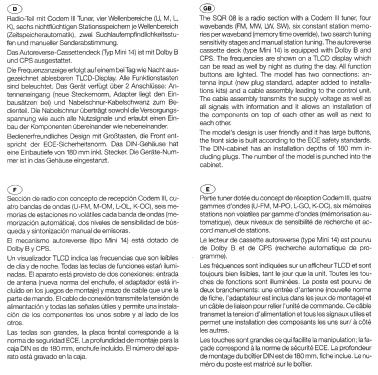

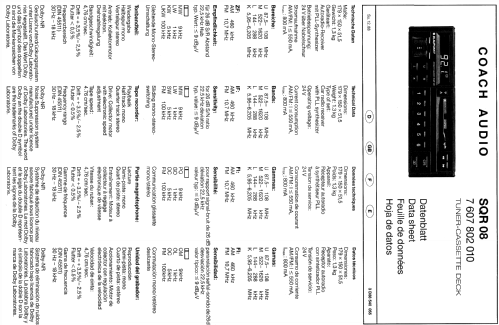

• Original Blaupunkt Service Unterlagen 12/1988

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
