• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27584

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

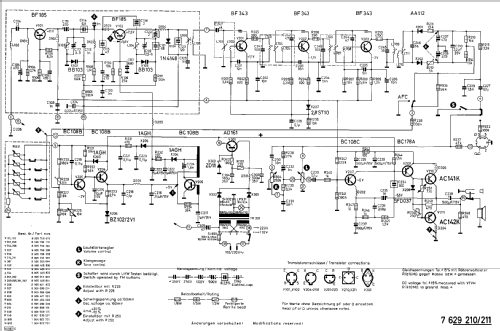

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BF185 BF185 BF343 BF343 BF343 BC108 BC108 BC108 BC108 BC178 AC141 AC142 AD161 BB103 1N4148 AA112 2,8St10 1AGH ZD11 BZ102 SFD037

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Uppsala 7.629.210 [ab 330001] - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 345 x 88 x 170 mm / 13.6 x 3.5 x 6.7 inch

• Notes

• Haltevorrichtung für Wandmontage, 5-pol. DIN-Anschluss und Kopfhörer-Anschluss vorhanden.

  Dioden teilweise mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970
