• Year
  • 1949 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 269726
    • alternative name: Elektronik Plauen/Vogtland, VEB

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

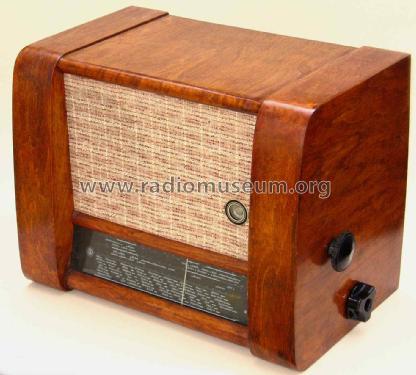

  • Model: Senorita 6523WM - Blohm, Ing. Heinz; Plauen /
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 330 x 270 mm / 17.3 x 13 x 10.6 inch
  • Notes
  • Zwei getrennte Chassis für HF- und NF-/ Netz-Teil. Baujahr ist unklar, einige Bauteile tragen 1949, das Typenschild zeigt sogar eine 48. Schaltung stimmt weitgehend mit Modell 6523WB überein.

    Spulensatz und Bandfilter von Hescho.

  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
