• Year
  • 1955/1956
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 14090
    • alternative name: Elektronik Plauen/Vogtland, VEB

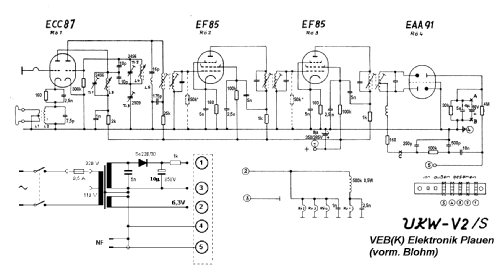

Click on the schematic thumbnail to request the schematic as a free document.

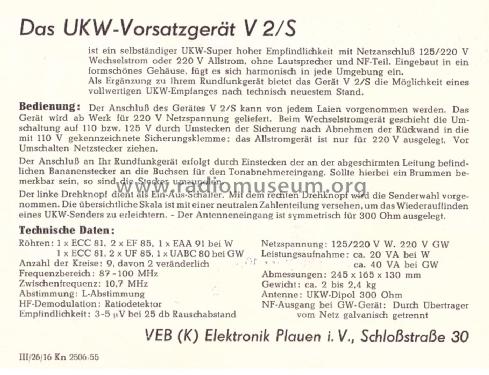

 Technical Specifications

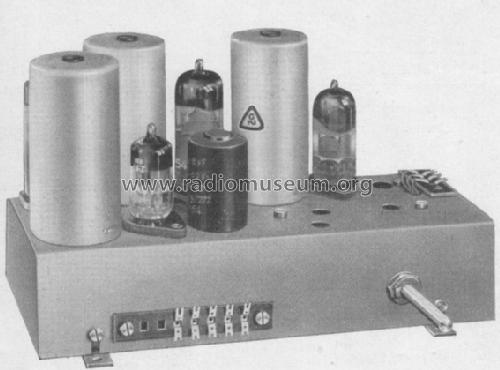

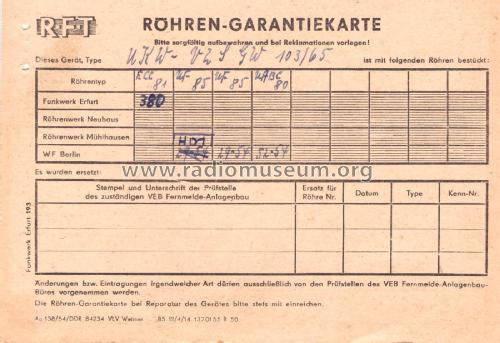

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • RF Converter/Adapter (not voltage converter); ZF/IF 10700 kHz
  • Tuned circuits
  • 9 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org

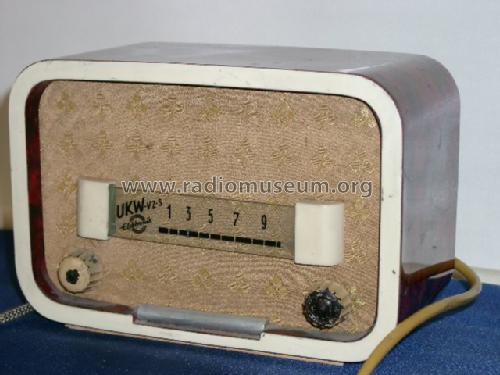

  • Model: Vorsatzgerät V2S - Blohm, Ing. Heinz; Plauen /
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 244 x 160 x 130 mm / 9.6 x 6.3 x 5.1 inch
  • Notes
  • Gehäuse wie "Freundschaft", ohne Tasten (Kunststoffüberzug mit Perlmutteffekt, verschiedene Farben). Bereich 87 - 100 MHz. Modell V1S 50 - 70 MHz (wahrscheinlich nur geplant, keine Produktion).
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

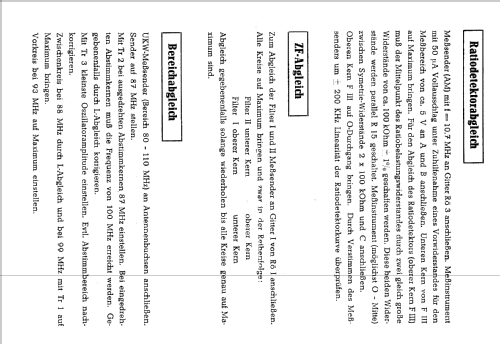

  • Literature/Schematics (1)
  • Funkverlag Hein, Service-DVD
  • Picture reference
  • Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
