For model UCT, Bogen, David Co., Inc.; New York (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Bogen, David Co., Inc.; New York (NY)
Year: 1954 Type: Converter SW/FM/VHF/UHF (Adapter, Frequency Mod.)
Valves / Tubes 2: 6AF4 or 6T4 6BZ7 or 6BQ7
Principle Converter / Adapter
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: UCT - Bogen, David Co., Inc.; New
Shape Tablemodel, with any shape - general.
Notes The David Bogen Model UCT is an AC Operated All-Channel UHF Converter.
Tuning Range: Channels 14 thru 83.

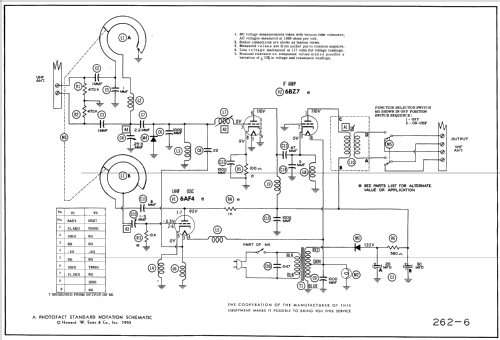

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-55, Set 262, Folder 6)

Model page created by Egon Penker. See "Data change" for further contributors.
