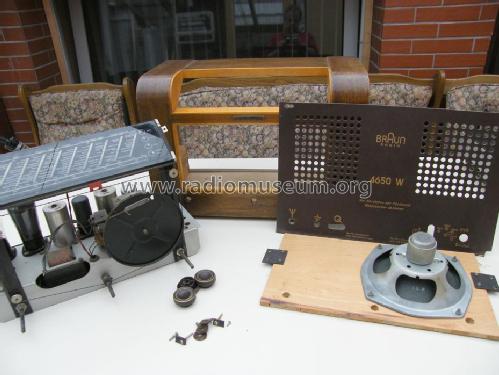

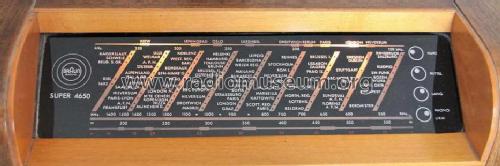

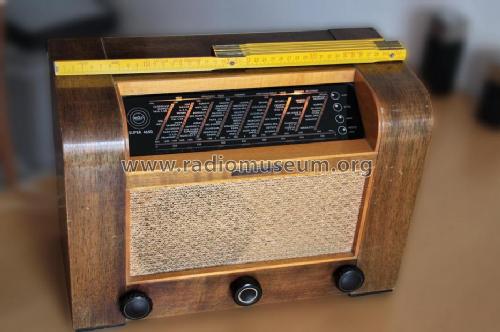

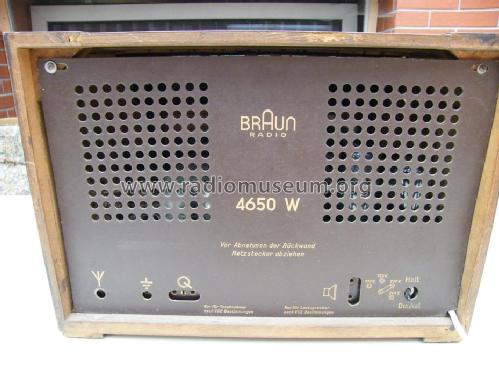

Braun; Frankfurt: 4650W [Radio] ID = 175 656x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4650W, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4650W - Braun; Frankfurt
Material Wooden case
Dimensions (WHD) 420 x 290 x 200 mm / 16.5 x 11.4 x 7.9 inch
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 325.00 DM
Collectors' prices
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (4914)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
