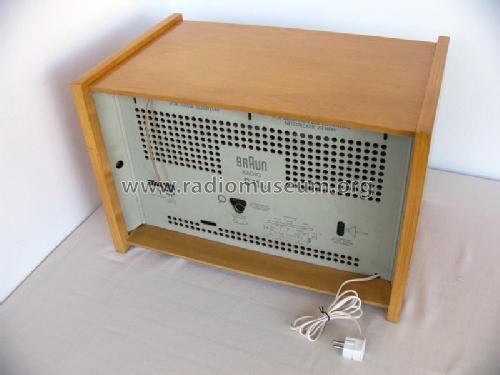

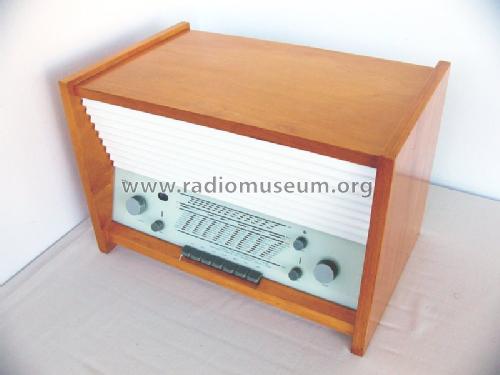

G11/61 Ch= RC61 A

Braun; Frankfurt

  • Year
  • 1956/1957
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 1333

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: G11/61 Ch= RC61 A - Braun; Frankfurt
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 542 x 350 x 335 mm / 21.3 x 13.8 x 13.2 inch
  • Notes
  • drehbare Ferritantenne; abschaltbare Rauschunterdrückung.

    Wellenbereiche: UKW 87 – 101 MHz, KW 5 – 16 MHz, MW 515 – 1640 kHz, LW 145 – 350 kHz
    automatische UKW-Rauschunterdrückung, abschaltbar durch mittlere Taste FA-RU (= Ferritantenne - Rauschunterdrückung). Mit derselben FA-RU-Taste wird die Ferritantenne zur Verbesserung des MW-Empfangs eingeschaltet.
    AM/FM-Duplex-Seilantrieb
    Lautsprecher: Isophon Oval-Lautsprecher P 1826, 2 St. Isophon HM 10 schräg versetzt
    Gehäuse: Ahorn
    Design: Hans Gugelot

    Chassis RC61A hat eine andere Tastenform, entspricht sonst dem Grundchassis RC61

  • Net weight (2.2 lb = 1 kg)
  • 12.2 kg / 26 lb 14 oz (26.872 lb)
  • Price in first year of sale
  • 330.00 DM
  • Literature/Schematics (1)
  • -- Schematic
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet, das Copyright liegt beim Deutschen Rundfunk Museum (DRM), Berlin und beim Archiv-Verlag (AV). Sie finden eine grössere Abbildung und Schaltbild etc. bei der Loseblatt-Sammlung von DRM/AV.
