Phonosuper SK4/1

Phonosuper SK4/1; Braun; Frankfurt (ID = 11600) Radio
Phonosuper SK4/1; Braun; Frankfurt (ID = 12617) Radio Phonosuper SK4/1; Braun; Frankfurt (ID = 12619) Radio
Use red slider bar for more.
Phonosuper SK4/1; Braun; Frankfurt (ID = 12617) Radio
Braun; Frankfurt: Phonosuper SK4/1 [Radio] ID = 12617 839x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonosuper SK4/1, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1957/1958 Type: Broadcast Receiver - or past WW2 Tuner

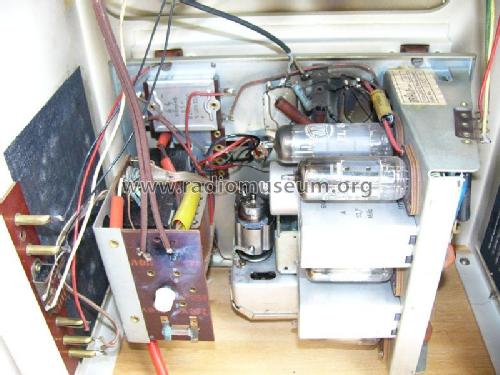

Valves / Tubes 5: ECC85 EF89 EF89 EABC80 EL84
Principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)

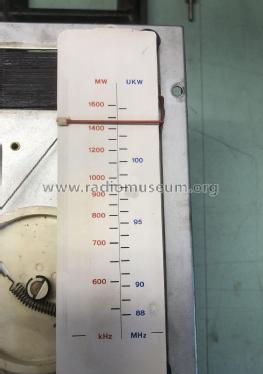

Wave bands Broadcast (BC) and FM.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Phonosuper SK4/1 - Braun; Frankfurt
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 240 x 290 mm / 22.8 x 9.4 x 11.4 inch
Notes

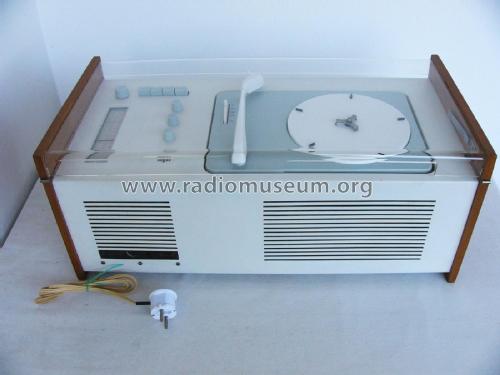

Weiss lackiertes Metallgehäuse mit Seitenteilen aus Holz (Rüster-Furnier [Ulme]) und Acrylglasdeckel;
Phono-Chassis PC3 mit Kristall-System; 4 Geschwindigkeiten 16, 33, 45 und 78 Upm, Plattenteller mit 5 Gumminoppen.
Getrennte Höhen- und Tiefenregelung.
Alle Knöpfe (3 + Sender) und Tasten (4) in hellgrau.
Gestaltung: H. Gugelot.

Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)
Price in first year of sale 295.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
