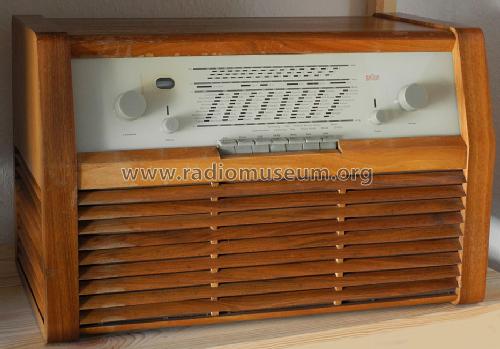

TS-G Ch= RC60, RC55 AUK

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20066

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 6 W (unknown quality)

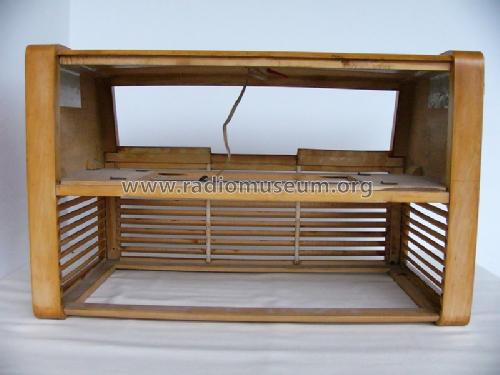

• Material
• Wooden case

• from Radiomuseum.org
• Model: TS-G Ch= RC60, RC55 AUK - Braun; Frankfurt

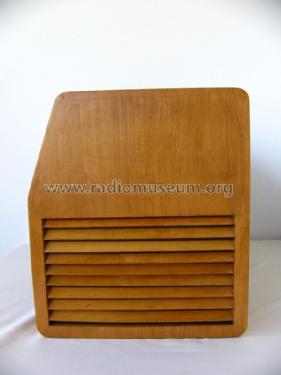

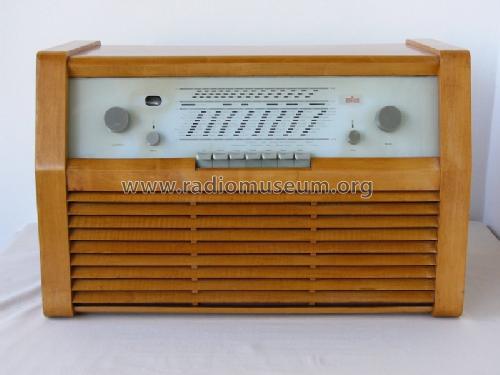

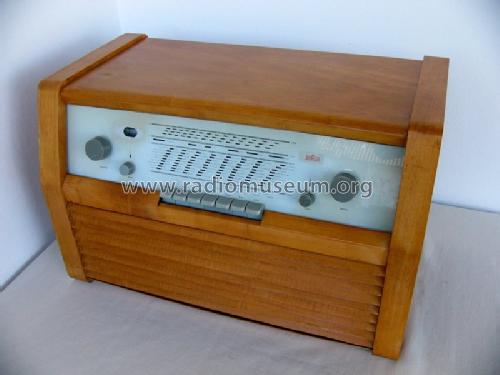

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 370 x 325 mm / 22.8 x 14.6 x 12.8 inch

• Notes

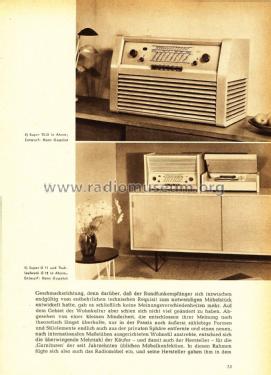

• Gestaltung: Hans Gugelot.

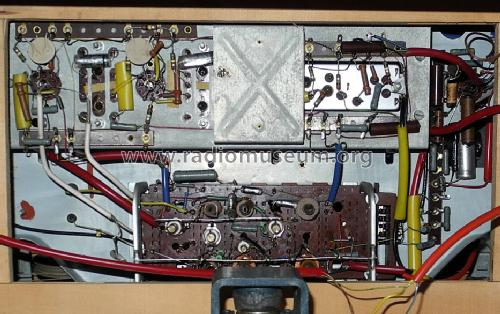

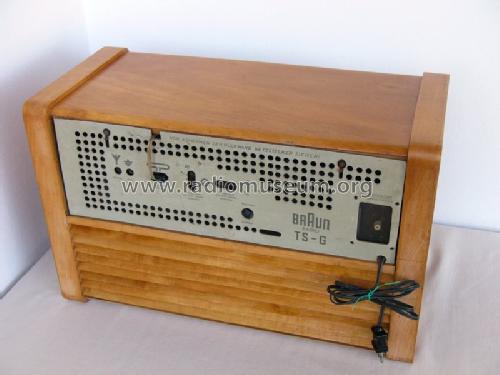

  Chassis RC55UK.

  Kataloge, Firmenprospekte und Schaltpläne bezeichnen das Chassis mit RC60 (Rundfunk-Chassis 60), tatsächlich produzierte Geräte zeigen die Typbezeichnungen RC55 AU, RC55 AUK oder RC56 AUK. Siehe hier.

• Net weight (2.2 lb = 1 kg)
• 13.3 kg / 29 lb 4.7 oz (29.295 lb)

• Price in first year of sale
• 360.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Literature/Schematics (1)
• -- Original-techn. papers.
