Visomat 111/211

Bruns; Hamburg

  • Year
  • 1973
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 249162

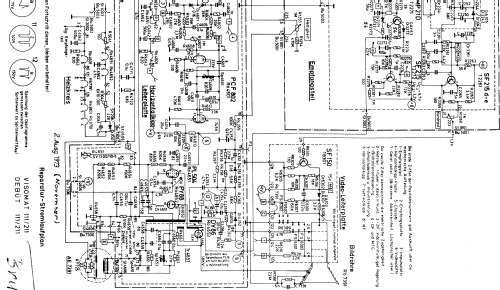

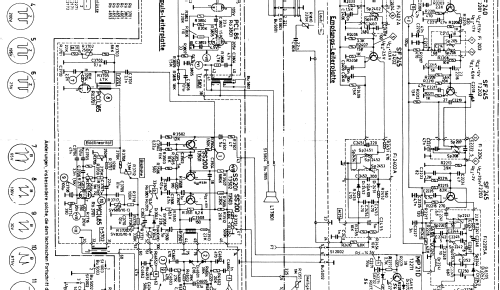

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Valves / Tubes
  • Number of Transistors
  • 16
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Visomat 111/211 - Bruns; Hamburg
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • ACHTUNG

    Ein Pol des Lichtnetzes ist mit dem Gerätechassis verbunden.
    Dieses Gerät darf bei einer Reparatur nur am Trenntrafo betrieben werden.

  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
