• Country
• United States of America (USA)

• Manufacturer / Brand
• Brunswick-Balke-Collender Co.

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34802

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UY224 UY224 UY224 UY224 UY227 UX245 UX245 UX280

• Number of Transistors

• Semiconductors
• D-110

• Main principle
• TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 100-130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

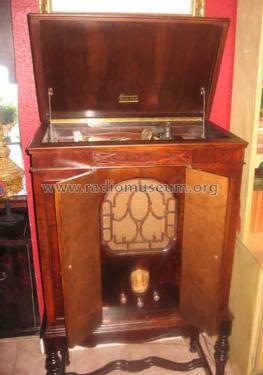

• Model: S-31 [old] - Brunswick-Balke-Collender Co.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 28 x 50 x 17.5 inch / 711 x 1270 x 445 mm

• Notes

• One dial (primary tuning control knob) .

  Push-pull af output; Ballast tube D-110 (60 cycles), D-126 (25 cycles).



• Price in first year of sale
• 249.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Complete Price Guide to Antique Radios: Pre-War Consoles

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953

• Literature/Schematics (2)
• Rider's Perpetual, Volume 3 = 1933 and before
