Panatrope

Panatrope ; Brunswick Ltd., (ID = 677645) R-Player
Use red slider bar for more.
Panatrope ; Brunswick Ltd., (ID = 677645) R-Player

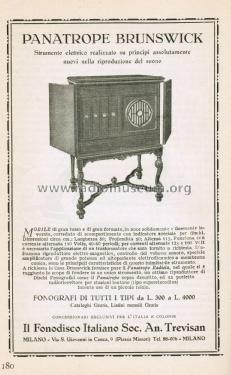

Brunswick Ltd.,: Panatrope [R-Player] ID = 677645 407x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panatrope, Brunswick Ltd., London:
As to be seen on a british Brunswick record sleeve.

Country:  Great Britain (UK)
Manufacturer / Brand:  Brunswick Ltd., London
Year: 1936 ?? Type: Recorder and/or Player
Valves / Tubes 2: Pen383 1D5_rectifier
Principle Audio-Amplification
Wave bands - without
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 195-255 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Panatrope - Brunswick Ltd., London
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Source of data -- Schematic
Literature/Schematics (1) Paul Stennings DVD

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Brunswick Ltd., London
Here you find 29 models, 5 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Brunswick Ltd.,: Panatrope
Threads: 1 | Posts: 1
Hits: 1056     Replies: 0
brunswick: Panatrope: Frequency range
Georg Richter
23.Oct.09
  1

The British Brunswick LTD. London wrote about the Panatrope on a record sleeve: "This instrument holds you spellbound and makes the music of any record leap into life so marvellously that you think the original performance is beeing re-played. It can also be used as a perfect loud-speaker to your wireless set."

They detailed the difference between "The Old Method" (mechanical recording and reproduction)

and "The Brunswick Method":

Obviously there was also a difference between advertisement (frequency range 16Hz-21kHz for recording!) and truth - even if Brunswick records of those times was of similar quality as of some other major record companies. But they wrote about electrical reproduction with the Panatrope "There are no limitations to electrical recording."
