Model: Navy Wire Recorder KS12016

Antique radios, Old Time Radios

Navy Wire Recorder KS12016

Country: United States of America (USA) Manufacturer/Brand: Brush Development Co.; Cleveland, Ohio
Year: 1943 ? Type: Music/speech recorder and/or -player.
Tonspeichergerät im weiteren Sinn, also auch Kassettengerät, CD-Player, Tonbandmaschine, Video-Maschine etc. möglich.Recorder and/or Player Mod.-ID = 129442 previous | Result List | next | New search for Radios etc. Schematics etc.: 0 (for members) Principle AF (audio) amplification only, one, two or three stages etc.
Niederfrequenzverstärkung.
Meist als «Nachsatz» zu einem Empfänger verwendet, um das Tonsignal zu verstärken - z.B. für Lautsprecherwiedergabe statt Kopfhörer.Audio-Amplification
Details Wire Recorder (or -Player)
Power type and voltage AC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.Alternating Current supply (AC) / 110 Volt
from Radiomuseum.org Model: Navy Wire Recorder KS12016 Shape Tablemodel, with any shape - general.

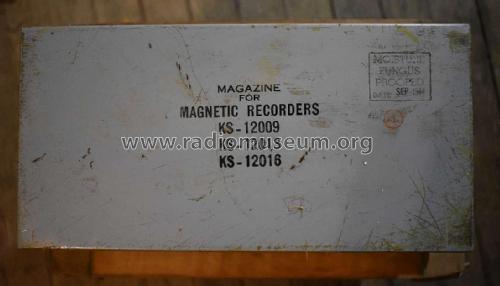

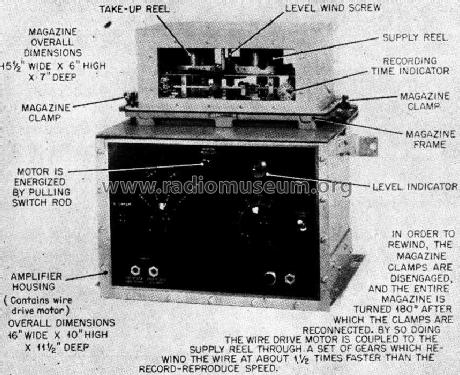

Notes Durig the WW2 "The Brush Development Company" made this Navy Wire Recorder KS12016 which served as a basis for designs of other magnetic-recording equipment for various branches of the armed forces. This wire recorder is significant in that it was the first magnetic recorder where the recording medium was housed in a totally enclosed magazine. This magazine is attached to the portion of the instrument containing the drive motor and the amplifier section. The 750-r.p.m. motor is directly coupled to the take-up reel spindle during recording and reproduction. It has to be removed and rotated to engage the rewind spindle to the motor. A step-up gear in the magazine gives a rewind-forward ratio of 1.6 to 1. The magazine contains a ring-type recording head and solenoidal erasing head, together with a level-wind mechanism, elapsed-time indicator, and automatic stop. Electrical connections were made to the magazine by means of plug-type connectors. The recording medium is 0.006-inch 420-type stainless steel wire and its speed increased from a minimum of 5 ft. per sec. to a maximum of 7.5 ft. per sec. Mechanical brakes in the magazine tension the wire during operation and prevent unreeling while the magazine is removed.

This model was suggested by Ernst Erb.

http://history.sandiego.edu/GEN/recording/begun6.html see the original at the site of The Brush Development Company.

No further information on

Navy Wire Recorder KS12016 (Brush Development Co.; Cleveland, Ohio)
