DAC90A cream

Bush Radio; London

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
Bush Radio; London

Year
1950–1959

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
82157

Schematics

DAC90A; Bush Radio; London (ID = 1050565) Radio — Bush Radio; London DAC90A (3)

DAC90A; Bush Radio; London (ID = 1050566) Radio — Bush Radio; London DAC90A (3)

DAC90A; Bush Radio; London (ID = 369411) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 573457) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 127088) Radio — Bush Radio; London DAC90A (2)
eBay seller bown007.

DAC90A; Bush Radio; London (ID = 127089) Radio — Bush Radio; London DAC90A (2)
eBay seller bown007.

DAC90A; Bush Radio; London (ID = 573456) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 592431) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 592435) Radio — Bush Radio; London DAC90A (1)
Inside my ivory cased Bush DAC90A radio.

DAC90A; Bush Radio; London (ID = 592438) Radio — Bush Radio; London DAC90A (1)
The back of my ivory Bush DAC90A.

DAC90A; Bush Radio; London (ID = 707178) Radio — Bush Radio; London DAC90A (1)

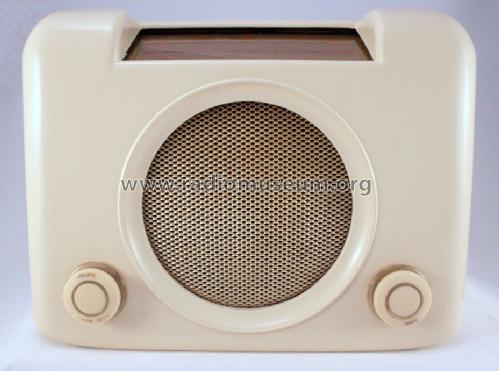

DAC90A; Bush Radio; London (ID = 707179) Radio — Bush Radio; London DAC90A (1)

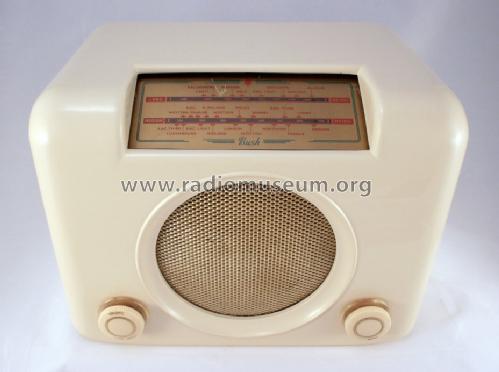

DAC90A; Bush Radio; London (ID = 707180) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 707181) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 889124) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 889127) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 889128) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229604) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229607) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229641) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229643) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229645) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229646) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229647) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1229648) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 1462272) Radio — Bush Radio; London DAC90A (1)

DAC90A; Bush Radio; London (ID = 2341723) Radio — Bush Radio; London DAC90A (1)
DAC90A

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
UCH42 UF41 UBC41 UL41 UY41

Main principle
Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast (MW) and Long Wave.

Power type and voltage
AC/DC-set / 210, 230, 250 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

Power out
2 W (unknown quality)

Material
Bakelite or Plastics (type unknown)

from Radiomuseum.org
Model: DAC90A [cream] - Bush Radio; London

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
12.75 x 9.25 x 7.6 inch / 324 x 235 x 193 mm

Notes
The best selling valve radio in Great Britain. The radio was also available in a walnut coloured Bakelite cabinet at les cost; later models had an IF/ZF of 470 kHz. The three voltages have to be changed by opening a screw and to put the wire to the other screw. At the back is given 200-250 Volts.
A commonProblemis: Volume doensn´t go to zero on a strong signal if Potentiometer is at the CCW stop. Remedy: a 330 picofarad capacitor between Grid and Kathode of the UBC41. Short leads are important, and perhaps replacement of the big 100k resistor to the grid by a smaller sized one of the same value. See also info below.

Net weight (2.2 lb = 1 kg)
4.5 kg / 9 lb 14.6 oz (9.912 lb)

Source of data
Radio! Radio!

Author
Model page created by Ernst Erb. See "Data change" for further contributors.
