• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 274839

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

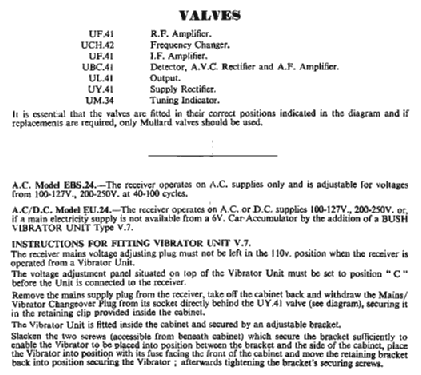

• UF41 UCH42 UF41 UBC41 UM34 UL41 UY41

• Main principle
• Superhet with RF-stage; 2 AF stage(s); Export model

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 210; 230; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: EU24 [with UM34] - Bush Radio; London

• Shape
• Tablemodel, low profile (big size).

• Notes

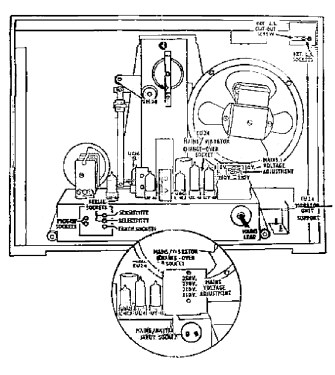

• The radio has a built-in power supply but can be fed by a 6 Volt battery by using the Bush vibrator unit type V7.

  There is also a Bush EU24 with UM4 magic eye.

  Reception ranges: 1 BC and 5 shortwave bandspread ranges:

  • BC (MW): 524 - 1750 kHz
  • SW1: 1.75 - 5.9 MHz
  • SW2: 5.9 - 9.05 MHz
  • SW3: 9.05 - 13.7 MHz
  • SW4: 13.7 - 20.25 MHz
  • SW5: 20.25 - 30.0 MHz

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
