VHF80C (VHF 80 C)


Country: Great Britain (UK) Manufacturer/Brand: Bush Radio; London
Year: 1960 Type: Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 95734 previous | Result List | next | New search for Radios etc. Schematics etc.: 0 (for members) Principle Super-Heterodyne (Super in general); IF-Freq. 470/10700Superhet - normally without a preamplification stage (as far as known). Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne. Normalement sans préamplification de HF.
Superhet ohne Vorstufe.
Nicht immer war bei der Erfassung klar, ob der Empfänger eine Vorstufe aufweist oder nicht. Im Zweifelsfall kam das Gerät in diese Kategorie.

Wave bands Broadcast, Long Wave and FM.Langwellen, Mittelwellen und UKW (FM).
Bei Geräten Anfangs der 50er Jahre ist der UKW-Bereich noch beschränkt, führt also nicht bis 108 MHz.

Power type and voltage AC/DC-set / 200-250 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!

Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!

Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - ellipticalPermanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
/ Ø 15.2 cm = 6 inch

www.radiomuseum.org Model: VHF80C (VHF 80 C) Material Bakelite caseBakelite case, shape horizontal or not known.
Caisse en bakélite.
Das Gehäuse des Apparates besteht zum grössten Teil aus Bakelit oder anderen ähnlichen Stoffen (wie z.B. Philit).
Die Form ist Querformat oder nicht bekannt. Vielleicht haben Sie weitere Angaben dazu - z.B. Masse (falls diese fehlen)? Bitte mittels «Infos zum Modell hinzufügen» als Text eingeben. Danke.

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 14 x 9.5 x 6 inch / 356 x 241 x 152 mm
Valves / Tubes 7: UCC85     (more for members)

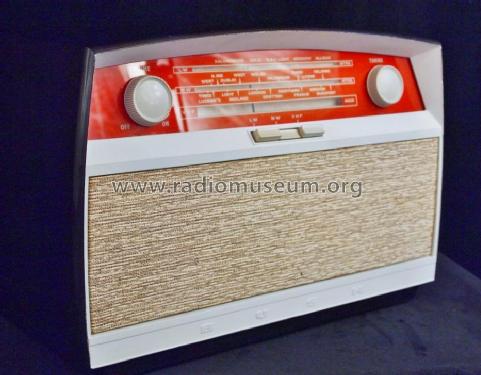

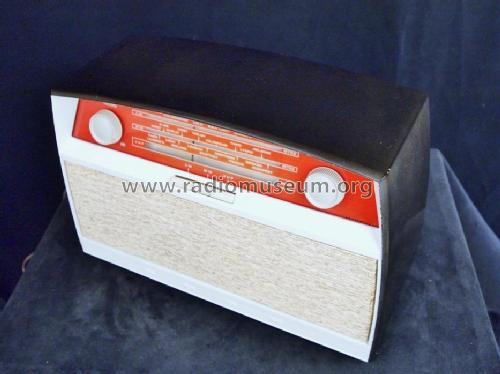

Notes Released February 1960 price £15 17s 2d plus purchase tax. The VHF80C has a light grey front and a red tuning scale, the VHF80 which has an identical chassis has a gold front and a black tuning scale.
Price in first year of sale 18 GBP
Collectors prices 1 Collector price (for members)
Mentioned in -- Original-techn. papers.Die Daten stammen aus technischen Unterlagen des Herstellers - aus der Zeit der Herstellung.

This model was suggested by Howard Craven.

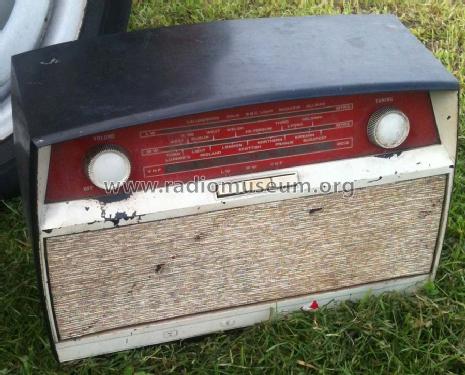

My ca.1961 Bush VHF80C MW/LW/VHF valve radio in its black plastic case and pale grey painted front which has just been totally rebuilt with a newly painted front, three new valves and all new capacitors. This set has a faint mark on the top of its cabinet where a British Wireless for the Blind Fund label was once stuck on. The rear cover of the Bush VHF80C showing tape recorder and aerial sockets. More pictures
