• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1942 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286179

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6 6U5 5Y4

• Main principle
• Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 1.5 W (3.7 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 201A - Canadian Marconi Co. Ltd. CMC,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13 x 10 x 7 inch / 330 x 254 x 178 mm

• Notes

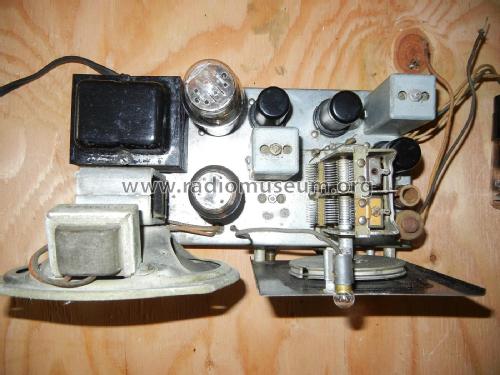

• The Canadian Marconi model 201A is a 6-tube mantel radio with tuning eye tube. Covers standard broadcast and 5.6-18.2 MHz shortwave.

• Net weight (2.2 lb = 1 kg)
• 15 lb 0 oz (15 lb) / 6.810 kg

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Marconi sheet 115)

• Literature/Schematics (2)
• Marconi Service Manual (Volume 1) (P. 459-462)

• Author
• Model page created by Gilles Girard. See "Data change" for further contributors.
