• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1935/1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286817

• • alternative name: CMC Canada || Marconi, Canada

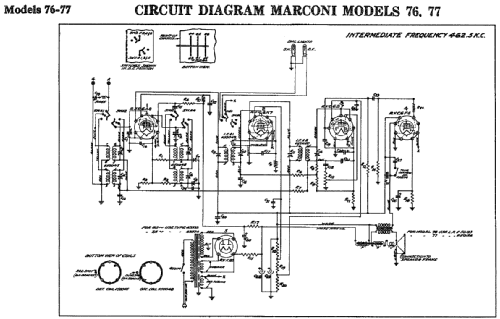

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6B7 6F6 80

• Main principle
• Superheterodyne (common); ZF/IF 462,5 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.3 W (4.5 W max.)

• Material
• Wooden case

• from Radiomuseum.org

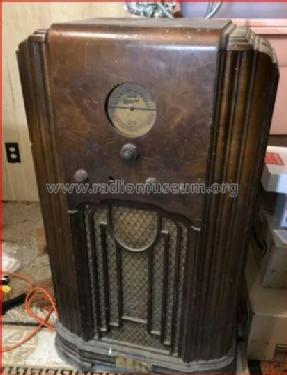

• Model: 77 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with any shape - in general

• Notes

• Frequency Range:
  Broadcast Band 528  to 1725 kHz. Short Wave Band 5.625 to 18.000 MHz.

  Same chassis of model 76.

• Author
• Model page created by Valentino Tancredi. See "Data change" for further contributors.
