- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1936/1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293700
-
- alternative name: CMC Canada || Marconi, Canada
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 462.5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 85 - Canadian Marconi Co. Ltd. CMC,
- Shape
- Console with any shape - in general
- Notes
-

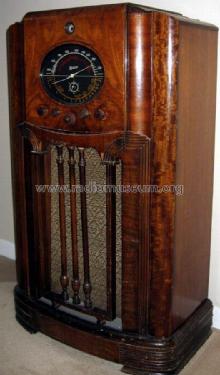

The Canadian Marconi model 85 is a floor standing console radio with tuning eye indicator and push pull output. Covers 550-1600 kHz, 1.7-5 MHz and 5.3-18 MHz. This model requires an external wire antenna.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Marconi 1936 1937 p. 47)
- Author
- Model page created by Steve Valeriote. See "Data change" for further contributors.
