• Year
  • 1953 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 229502

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

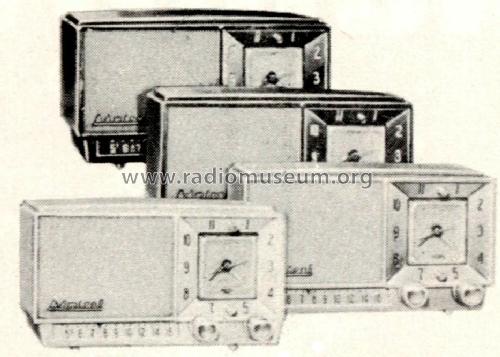

  • Model: 5E38X Ch= 5E3X - Canadian Admiral Co. Ltd; Long
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 10.25 x 5.5 x 5.25 inch / 260 x 140 x 133 mm
  • Literature/Schematics (3)
  • Admiral Folder RA-200, Season 1953
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
