• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153466

• • alternative name: Westinghouse Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

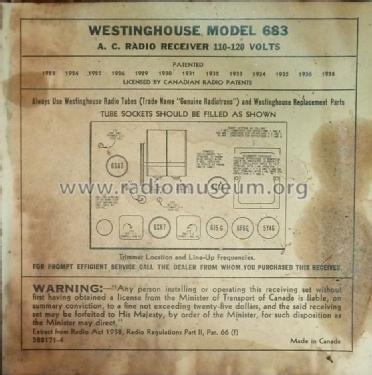

• Valves / Tubes
• 6SA7 6SK7 6J5G 6SQ7 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

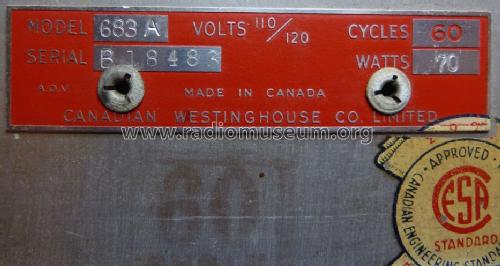

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: W-683-A - Canadian Westinghouse,

• Dimensions (WHD)
• 15 x 11.5 x 9.5 inch / 381 x 292 x 241 mm

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Westinghouse page113, 114

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
