21 with changer "10-12"
Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Country
- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35019

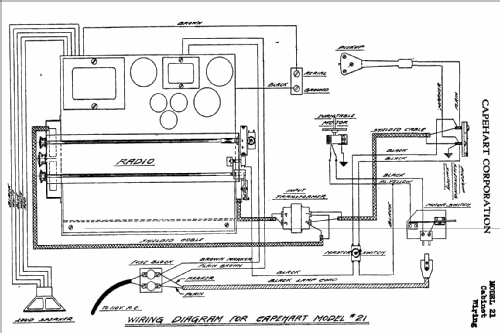

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21 with changer "10-12" - Capehart Corp.; Fort Wayne, IN
- Shape
- Console with any shape - in general
- Notes
-
We are uncertain if the Capehart model 21 is a coin operated phono with an 8-tube Superhet radio - or a home model without coin operation. We believe the latter. The changer is a "10-12" model. The season 1931/32 is also the start of Capehart's 400 De Luxe series with turn-over changers.
- Price in first year of sale
- 275.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (2)
- Radio Collector`s Guide 1921-1932 (page 201)
