• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80720

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12BA6 12AV6 6AK6

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Capehart C-14 Ch=CR-93 - Farnsworth Television & Radio

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

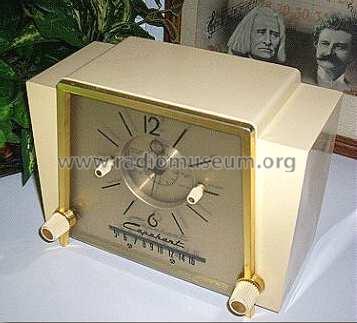

• The model Capehart C-14 is an AC operated AM superheterodyne receiver with electric clock, alarm and sleep function. Model C-14 has a selenium rectifier. There is also a radio-phono switch. The model was available in color Dresden White or Ebony.

• Source of data
• Beitman Radio Diagrams, Vol. 15, 1955

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-55, set 263, folder 4)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
