LCD Pocket Color Television TV-470D

LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074822) Television LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074825) Television
LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074826) Television LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074827) Television
LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074830) Television LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074832) Television
LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1075949) Television LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1075950) Television
LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1075951) Television LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1705973) Television
Use red slider bar for more.
LCD Pocket Color Television TV-470D; CASIO Computer Co., (ID = 1074822) Television
CASIO Computer Co.,: LCD Pocket Color Television TV-470D [Television] ID = 1074822 721x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model LCD Pocket Color Television TV-470D, CASIO Computer Co., Ltd.; Tokyo:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  CASIO Computer Co., Ltd.; Tokyo
Year: 1991 Type: Television Receiver (TV) or Monitor
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands VHF/UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / 4 × 1,5; 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: LCD Pocket Color Television TV-470D - CASIO Computer Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 130 x 30 mm / 3.1 x 5.1 x 1.2 inch

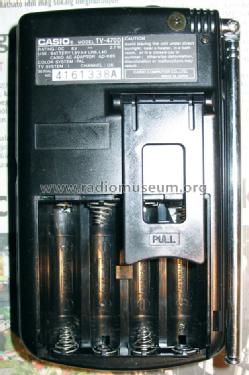

Notes Receives in UHF TV bands. 60 mm dia colour LCD display. Tuning is via up/down scan buttons. Batteries only used to last 3 hours. Powered by 4 AA alkaline cells. PAL system. Ext.Power Jack: DC 6V.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
