5165 Ch= 515-1 maroon

CBS-Columbia Inc.; New York, NY

  • Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89685
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

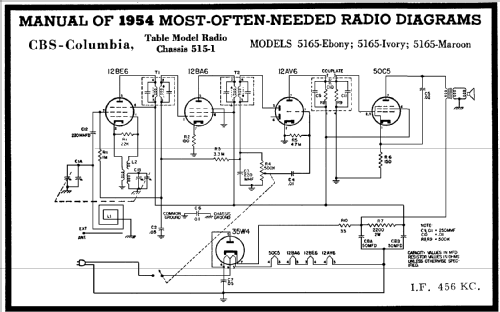

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5165 Ch= 515-1 [maroon] - CBS-Columbia Inc.; New York,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 14, 1954
