878V Typ 153 or 157 (?)

Centrum-Radio, Gylling & Co.; Stockholm

  • Year
  • 1950 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 291861
    • Brand: Gylling

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 462 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 878V Typ 153 or 157 - Centrum-Radio, Gylling & Co.;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

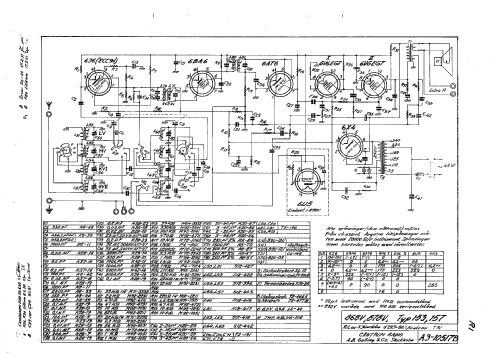

  • The schematic is valid for two models, 868V and 878V - and two chassis type 153 and 157. We don't currently know which model uses which chassis, or if two chassis were used in those two radios.

  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
