Model: 4110MF (4110 MF)






Antique radios, Old Time Radios

4110MF (4110 MF)
Country:
Italy
Manufacturer/Brand:
CGE – Compagnia Generale di Elettricità; Milano
Year: 1951 / 1952
Type:
Broadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.Radio or Tuner
Mod.-ID = 88599
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 2 (for
members)
Principle
Superhet - normally without a preamplification stage (as far as known). Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne. Normalement sans préamplification de HF.
Superhet ohne Vorstufe.
Nicht immer war bei der Erfassung klar, ob der Empfänger eine Vorstufe aufweist oder nicht. Im Zweifelsfall kam das Gerät in diese Kategorie.Super-Heterodyne (Super in general); IF-Freq. 468/10500 kHz
Wave bands
Broadcast, Short Wave plus FM.
Power type and voltage
AC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.Alternating Current supply (AC) / 110-275 Volt
Loudspeaker/pwr.out
Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
/ 10 W
from Radiomuseum.org
Model: 4110MF (4110 MF)
Material
Wooden case. Most radios have a wooden cabinet until the WW2. Caisse en bois.
Die meisten Heim-Rundfunkempfänger führen von Beginn an bis etwa Ende 60er Jahre Holz als Gehäuse. Auch frühe Reiseempfänger zeigen Holz (speziell in den 20er Jahren) oder Holz mit Stoffüberzug etc.Wooden case
Shape
Tablemodel with Push Buttons.
Dimensions (WHD)
720 x 370 x 320 mm / 28.3 x 14.6 x 12.6 inch
Valves / Tubes
12:
6BA6
(more
for members)
Notes

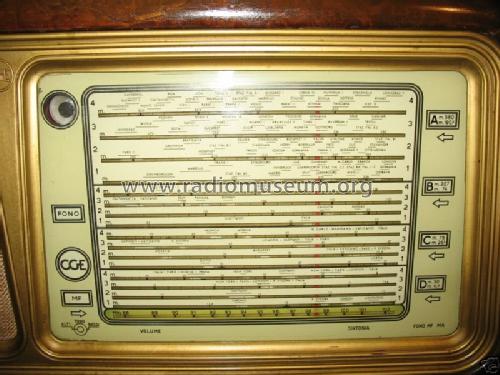

Gamme d'onda: 193-580m 4 sottogamme, 207-74m 4 sottogamme, 75-26,5m 4 sottogamme, 30-11,2m 4 sottogamme; selezione tramite tastiera. In pratica tutte le gamme d'onda Am sono divise in 16 sottogamme ottenibile mediante la combinazione di 4+4 tasti. Utilizza la valvola octal 6SN7gt come convertitrice FM. "Guida pratica antique radio 1" indica 1955-56 come anni di produzione, date le valvole la produzione è molto probabilmente antecedente.
AM band in 16 subrange selected by a 4+4 key combination. Very unusual a 6SN7 tube as FM converter (oscillator and mixer) in this radio. "Guida pratica Antique Radio 1" lists this radio as made in 1955-56, but is most likely earlier.
This model was suggested by Alessandro De Poi.

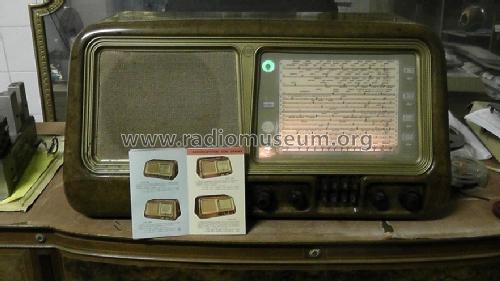

Foto per cortesia venditore ebay: fravagnano
Foto per cortesia venditore ebay: fravagnano
Foto per cortesia venditore ebay: fravagnano
