• Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97220

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

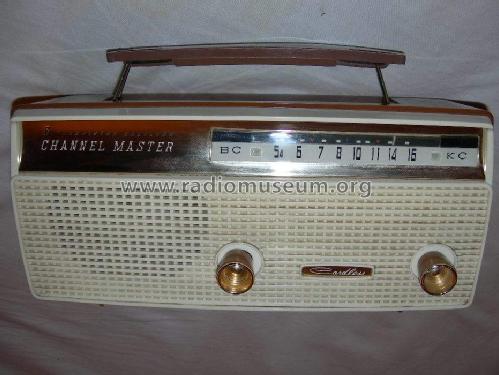

  • Model: Cordless 6505 - Channel Master Corp.; USA
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 260 x 120 x 100 mm / 10.2 x 4.7 x 3.9 inch
  • Notes
  • Made in Japan (by Sanyo) for Channel Master Corp. Frequency Range 540-1600 kHz.
  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Literature/Schematics (1)
  • -- Collector info (Sammler)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
