Transmitter 30K-1

Transmitter 30K-1; Collins Radio (ID = 1314696) Amateur-T Transmitter 30K-1; Collins Radio (ID = 1314912) Amateur-T
Use red slider bar for more.
Transmitter 30K-1; Collins Radio (ID = 1314696) Amateur-T
Collins Radio: Transmitter 30K-1 [Amateur-T] ID = 1314696 933x1118
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmitter 30K-1, Collins Radio Company; Cedar Rapids (IA):
By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at www RadioShackCatalogs.com. This picture is from 1949, page 2.

Country:  United States of America (USA)
Manufacturer / Brand:  Collins Radio Company; Cedar Rapids (IA)
Year: 1946 Type: Amateur Transmitter (only)

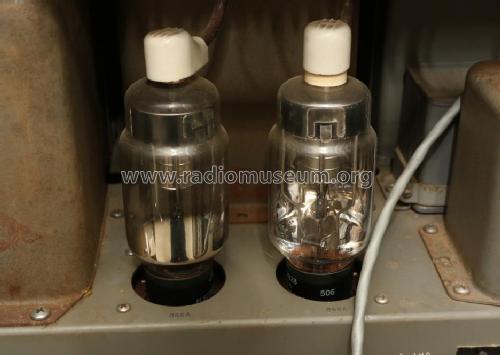

Valves / Tubes 11: 6SJ7 6H6 6SN7 6B4G 75TH 75TH 4-125A 5R4GY 5R4GY 866A 866A
Principle Radio Frequency Amplification only
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Transmitter 30K-1 - Collins Radio Company; Cedar
Material Metal case
Shape Console with any shape - in general
Dimensions (WHD) 22 x 66.5 x 16.5 inch / 559 x 1689 x 419 mm

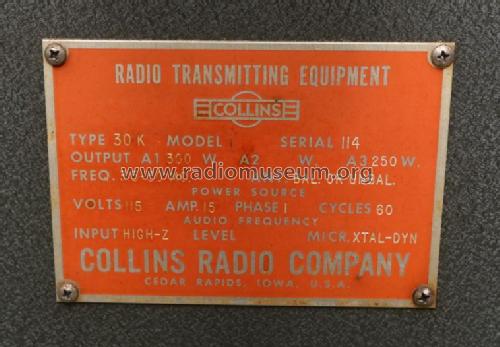

Notes Collins 30K-1 CW/AM Transmitter: covers 160 to 10 meters HAM bands incl. 11 meters, carrier output CW (A1) 300W, AM (A3) 250 W.
Matching 310A exciter unit.
Price is 1948 and includes 310A exciter.
Price in first year of sale 1,450.00 $
Collectors' prices
Source of data Collins-The Pocket Guide 1946-80

Model page created by Otto Frosinn. See "Data change" for further contributors.
