• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143355

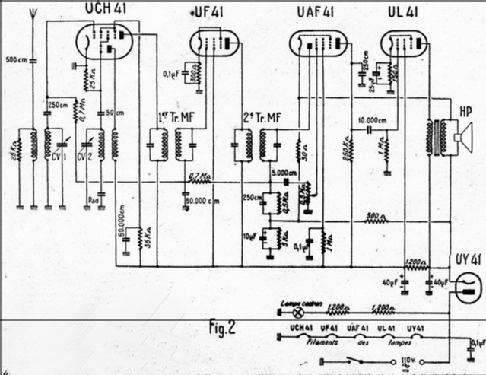

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 130 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Super Rimlock - Comptoir MB Radiophonique M.B.
  • Dimensions (WHD)
  • 220 x 130 x 110 mm / 8.7 x 5.1 x 4.3 inch
  • Notes
  • Tous Courants.
  • Literature/Schematics (1)
  • Radio Constructeur et Dépanneur 1949
  • Author
  • Model page created by Raynal Aufils. See "Data change" for further contributors.
