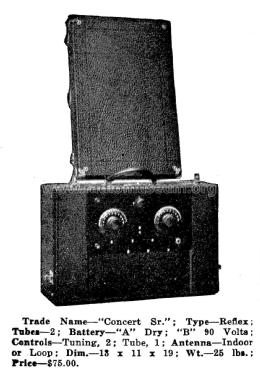

Concert Sr.
Concert Radiophone Co.; Cleveland, Ohio
- Country
- United States of America (USA)
- Manufacturer / Brand
- Concert Radiophone Co.; Cleveland, Ohio
- Year
- 1924/1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35727
-
- Brand: Concert Grand
- Number of Tubes
- 2
- Valves / Tubes
- Main principle
- TRF without regeneration; Reflex
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 3 & 90 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Concert Sr. - Concert Radiophone Co.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 19 x 13 x 11 inch / 483 x 330 x 279 mm
- Notes
-
Two dials (primary tuning control knobs)
Loop antenna.
- Net weight (2.2 lb = 1 kg)
- 25 lb (25 lb 0 oz) / 11.350 kg
- Price in first year of sale
- 75.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- September 1925, Electrical Record Supplement page 34
- Other Models
-
Here you find 8 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Concert Radiophone Co.; Cleveland, Ohio
