• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125327

• Number of Tubes
• 5

• Valves / Tubes
• AF2 AK1 E444S E443H 506

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

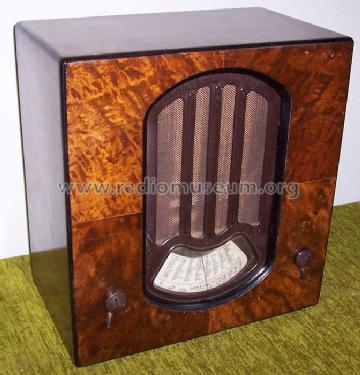

• Model: V65 - Stern & Stern Concerton /

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 400 x 440 x 235 mm / 15.7 x 17.3 x 9.3 inch

• Price in first year of sale
• 290.00 SEK

• Source of data
• - - Data from my own collection

• Other Models

• Here you find 392 models, 221 with images and 172 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
