AM8

AM8 ; Admiral brand (ID = 466244) Radio

AM8 ; Admiral brand (ID = 466245) Radio
Use red slider bar for more.
AM8 ; Admiral brand (ID = 466244) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.
alternative name

Continental Radio & TV
Year: 1940 ?? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 19: 6K7 6A8 6K7 6K7 6G5 6H6 6C5 6C7 5W4 5W4 85 6D6 42 45 45 45 45 80 83-V
Principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AM8 - Admiral brand Continental
Notes 2 speakers.
External source of data Ernst Erb

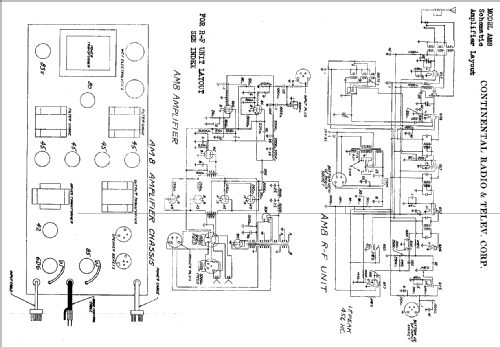

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
