• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21108

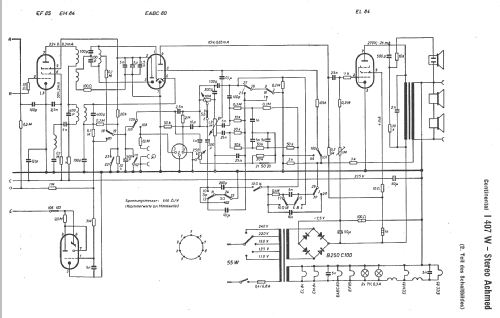

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 5.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Imperial Achmed 407 - Continental-Rundfunk GmbH
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 680 x 415 x 270 mm / 26.8 x 16.3 x 10.6 inch
  • Notes
  • drehbare Ferritantenne.
  • Net weight (2.2 lb = 1 kg)
  • 12.5 kg / 27 lb 8.5 oz (27.533 lb)
  • Price in first year of sale
  • 398.00 DM
  • External source of data
  • Erb
