56TR

56TR ; Crosley Radio Corp.; (ID = 327431) Radio

56TR ; Crosley Radio Corp.; (ID = 327432) Radio

56TR ; Crosley Radio Corp.; (ID = 327433) Radio

56TR ; Crosley Radio Corp.; (ID = 826454) Radio

56TR ; Crosley Radio Corp.; (ID = 826455) Radio

56TR ; Crosley Radio Corp.; (ID = 826456) Radio

56TR ; Crosley Radio Corp.; (ID = 826457) Radio
56TR ; Crosley Radio Corp.; (ID = 327427) Radio 56TR ; Crosley Radio Corp.; (ID = 826452) Radio
Use red slider bar for more.

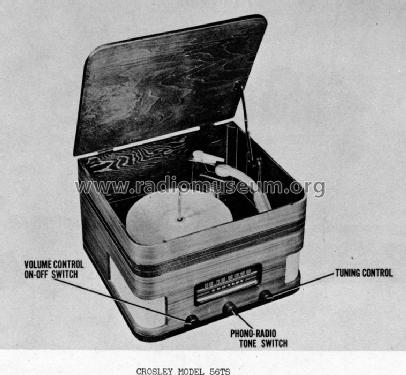

56TR ; Crosley Radio Corp.; (ID = 327427) Radio
Crosley Radio Corp.;: 56TR [Radio] ID = 327427 405x241
Select picture or schematic to display from thumbnails on the right and click for download.
For model 56TR, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1948 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SK7 12SA7 12SQ7 50L6GT 35Z5GT
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 56TR - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Record Changer: GI Model 205.
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to AR4.Ed.,Bunis, tube
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio CollectorGrinder, 1995
