Mail Pouch Tobacco Ch= 135

Crosley Radio Corp.; Cincinnati (OH)

  • Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 286612

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 181.5 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Mail Pouch Tobacco Ch= 135 - Crosley Radio Corp.;
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 13 x 18 x 9 inch / 330 x 457 x 229 mm
  • Notes

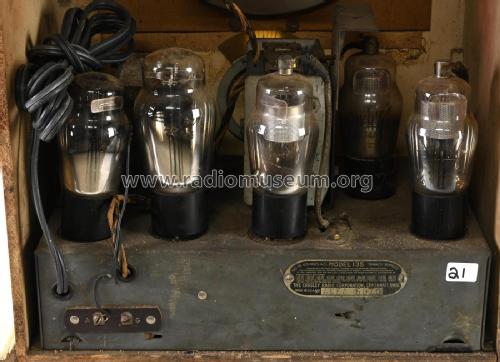

  • The Crosley Mail Pouch Tobacco radio was a radio used for advertising "Mail Pouch" brand products.  It used the Crosley 135 chassis.

  • Author
  • Model page created by Rodney Boleyn. See "Data change" for further contributors.
