Showbox 706
Crosley Radio Corp.; Cincinnati (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Crosley Radio Corp.; Cincinnati (OH)
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 36605

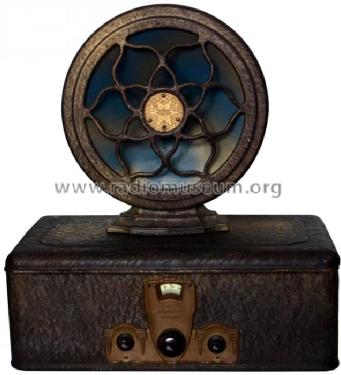

Copy gen. von Lynn Toppo Radio Attic

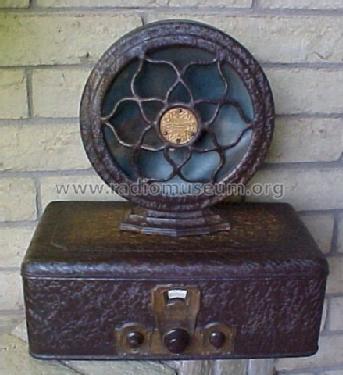

By courtesy of William Kendrick, USA
Crosley 706 Showbox
eBay item number:124991934777
eBay item number:124991934777
eBay item number:124991934777
eBay item number:124991934777
eBay item number:124991934777
eBay item number:124991934777
eBay item number:124991934777
eBay item number:124991934777
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF without regeneration; Neutrodyne
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 100-125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Showbox 706 - Crosley Radio Corp.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The model "Showbox" was made as model 706 for AC and as model 705 for DC. We show here the original tube line up from that time, not the later one in the schematic or replacements. One dial (primary tuning control knob)
- Price in first year of sale
- 80.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Collector's Guide to Antique Radios (6th edition)
