HiFi Stereo Sound System CSC-980F

Crown Radio Corp.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Crown Radio Corp.; Tokyo

Year
1983 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
157378

- alternative name: Asahi Radio Mfg. Co., Ltd

Schematics

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990990) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990991) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990992) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990993) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990995) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990996) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990997) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990998) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1990999) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991000) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991001) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991002) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

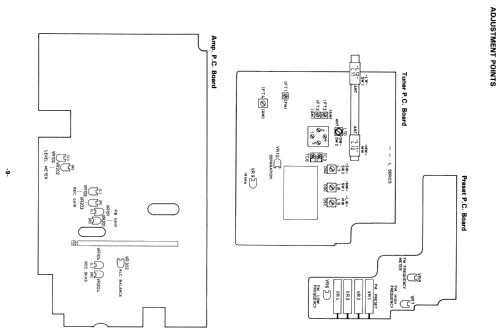

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991003) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991004) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991005) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991006) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991007) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991008) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991009) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991010) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991011) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991012) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991013) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991014) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991015) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (3)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 2827121) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (2)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 1991025) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (2)
Aus dem Servicemanual

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 2827122) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (2)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 2827123) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (2)

HiFi Stereo Sound System CSC-980F; Crown Radio Corp.; (ID = 2827124) Radio — Crown Radio Corp.; HiFi Stereo Sound System CSC-980F (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Wave bands
Broadcast, 2 Short Wave plus FM or UHF.

Details
Cassette-Recorder or -Player

Power type and voltage
Line / Batteries (any type) / 110; 200; 240 / D: 9 x 1,5 Volt

Loudspeaker
4 Loudspeakers / Ø 20 cm = 7.9 inch

Power out
20 W (max.)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: HiFi Stereo Sound System CSC-980F - Crown Radio Corp.; Tokyo

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
599 x 353 x 145 mm / 23.6 x 13.9 x 5.7 inch

Notes
Crown CSC-980F Hi-Fi Stereo Sound System FM/SW1/SW2/MW 4-Band Radiorecorder 20 cm 2 Way-4 Speaker System;
"Ghettoblaster-Boombox"
FM: 88 - 108 MHz, SW1: 2.5 - 7.5 MHz,
SW2: 7.5 - 21.5 MHz, MW: 510 - 1605 KHz,
four FM presets,
batt/light switch, AFC & FM muting, FM signal/frequency meter, bass, treble & balance control, loudness switch,
two VU meters, FM stereo/Power/Rec/Dolby indicator LEDs,
tape counter, Cue/Review & Auto-Stop, Metal/CrO2/Normal, rec. level control, Dolby NR/ALC, Mono/Stereo/Stereo Wide, two telescopic antennas, ext. antenna-in, 12 VDC in, headphones jack, Chinch phono-in with ground screw terminal, 2 x mic. & rem. in, ext. speaker jacks, massive metal handles for carrying belt on top, made in Japan.

Net weight (2.2 lb = 1 kg)
7 kg / 15 lb 6.7 oz (15.419 lb)

Author
Model page created by a member from A. See "Data change" for further contributors.
