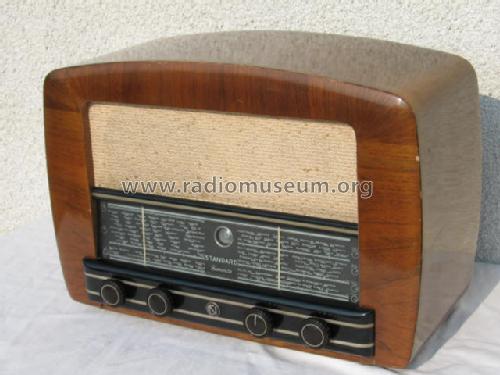

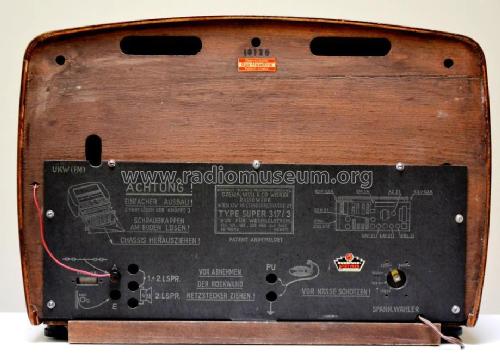

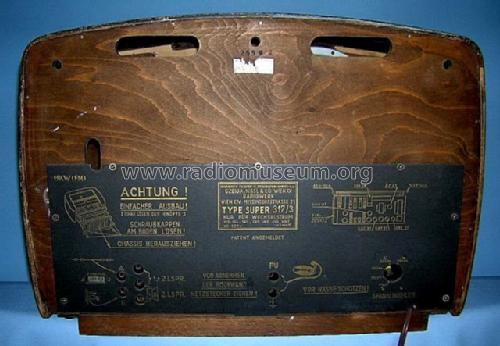

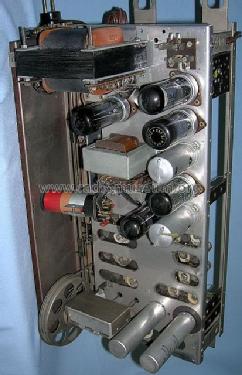

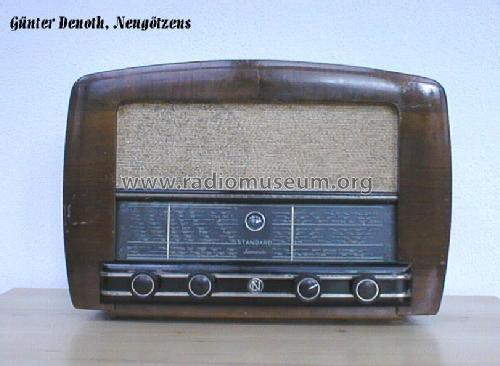

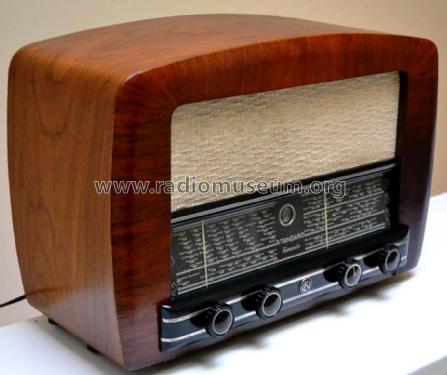

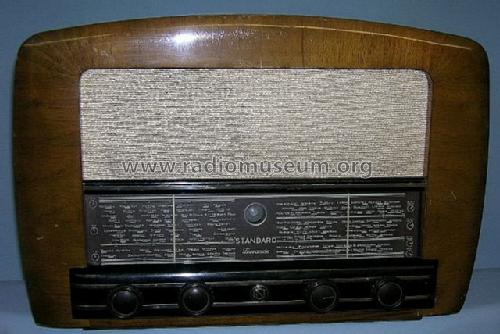

Ferrando 317-3

• Country
• Austria

• Manufacturer / Brand
• Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8284

• • alternative name: Hekaphon

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EAF21 EAF21 EBL21 EM34 AZ21

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, several Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ferrando 317-3 - Czeija, Nissl & Co., Standard,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 350 x 230 mm / 20.5 x 13.8 x 9.1 inch

• Notes
• Für UKW 320-1;Ändg.ab Nr.16761!

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
