PCM Audio Technology / Compact Disc Player DCD-635

Denon (Marke / brand)

  • Year
  • 1998 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 245160

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PCM Audio Technology / Compact Disc Player DCD-635 - Denon Marke / brand
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 434 x 100 x 283 mm / 17.1 x 3.9 x 11.1 inch
  • Notes

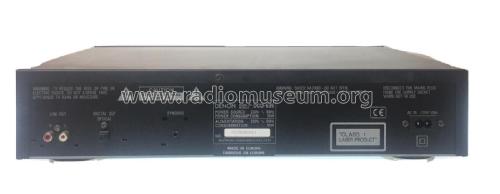

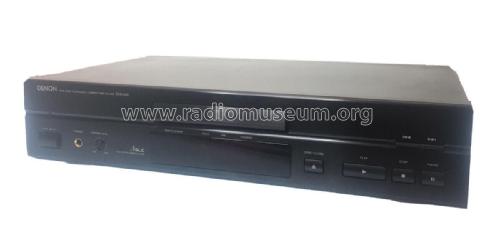

  • A stereo hi-fi compact disc player in a black or silver metal case, with remote control (RC-266). With ASLC Full Digital Servo System, Denon's 20-bit LAMBDA Super Linear Converter with eight-times oversampling. RCA Line Out sockets, Digital Out Optical connection, socket for Synchronized Recording function. Jack for headphones with volume control.

    Functions:        Automatic search, manual search,
                           programmed playback, repeat playback,
                           auto space, time mode, auto edit, dimmer
    Display:           Track number, time, music calendar,
                           emphasis feature and engaged modes

    Specification
    No. of Channels:            2 channels
    Frequency Response:    2 - 20.000 Hz
    Dynamic Rings:             98 dB
    Signal-to-noise Ratio:    107dB
    Harmonic Distortion:      0.003% (1 kHz)
    Separation:                   100 dB (1 KHz)
    Wow & Flutter:              Below measurable limit
    Output Voltage.             0.2 - 2.0 V

    Versions/Power Requirements
    230V AC 50Hz
    Power Consumption:     10W

    Mit IR-Fernbedienung RC-266.

  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)

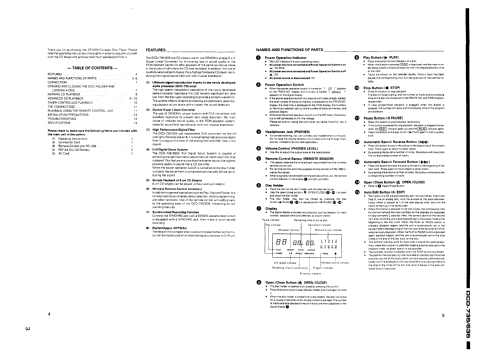

  • - - Manufacturers Literature (Service Manual DCD-735 DCD-635 Stereo CD Player)
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
