DCD-560

DCD-560; Denon Marke / brand (ID = 561364) R-Player DCD-560; Denon Marke / brand (ID = 561365) R-Player
Use red slider bar for more.
DCD-560; Denon Marke / brand (ID = 561364) R-Player

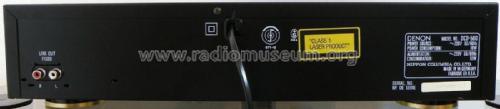

Denon Marke / brand: DCD-560 [R-Player] ID = 561364 590x227
Select picture or schematic to display from thumbnails on the right and click for download.
For model DCD-560, Denon (Marke / brand):
Original prospekt in 1990.

Country:  Japan
Manufacturer / Brand:  Denon (Marke / brand)
Year: 1990 Type: Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Audio-Amplification
Wave bands - without
Details CD-player or -equipment (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-120; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DCD-560 - Denon Marke / brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 434 x 105 x 280 mm / 17.1 x 4.1 x 11 inch
Notes Frequenzgang 2-20000Hz, Dynamikumfang 96 dB; Kopfhörerausgang Klinkenbuchse mit Pegelregler 5 mW; 20 Musiktitel frei programmierbar.
Fernsteuerung RC-207.
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Source of data -- Original-Prospect

Model page created by Franz Scharner. See "Data change" for further contributors.
