• Year
  • 1950 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 243190
    • Brand: Pierce Airo

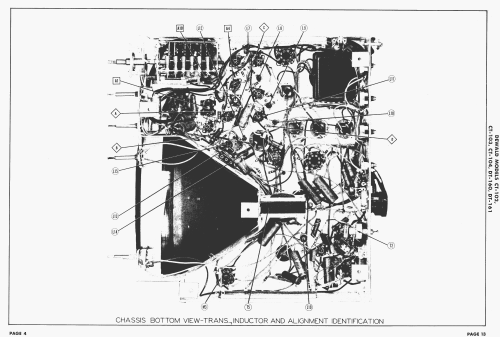

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: DT-160 - DeWald Radio Mfg. Corp.,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Televison Receiver 16" picture tube

    Channels 2 thru 13

    Tube V1 alternative 6AG5, V8 6SN7GT in early production, V9 6BA6
    in RF Tuner are used V301, V302, V303 3 times 6J6
