Dictet Recorder 103800

Dictet Recorder 103800; Dictaphone Co.; New (ID = 1062361) R-Player Dictet Recorder 103800; Dictaphone Co.; New (ID = 1062356) R-Player
Dictet Recorder 103800; Dictaphone Co.; New (ID = 1062357) R-Player Dictet Recorder 103800; Dictaphone Co.; New (ID = 1062358) R-Player
Dictet Recorder 103800; Dictaphone Co.; New (ID = 1062359) R-Player Dictet Recorder 103800; Dictaphone Co.; New (ID = 1146003) R-Player
Use red slider bar for more.

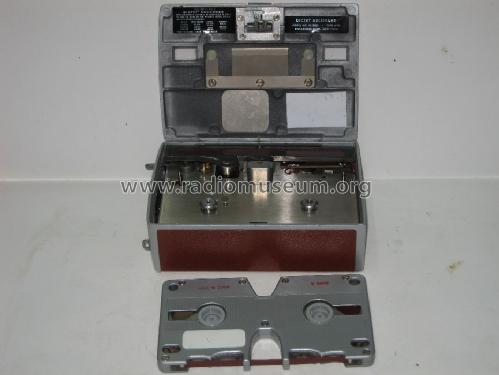

Dictet Recorder 103800; Dictaphone Co.; New (ID = 1062361) R-Player
Dictaphone Co.; New: Dictet Recorder 103800 [R-Player] ID = 1062361 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dictet Recorder 103800, Dictaphone Co.; New York, Mountan View

Country:  United States of America (USA)
Manufacturer / Brand:  Dictaphone Co.; New York, Mountan View
Year: 1957–1959 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 3x 6 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dictet Recorder 103800 - Dictaphone Co.; New York,
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 160 x 50 x 113 mm / 6.3 x 2 x 4.4 inch
Notes First tape cassette recorder, speed: 2 1/2 ips. Tape 1/4". Frequency response: 200 to 4000 Hz. Special aluminum cassette 2 x 30 minutes duration, special batteries mercury for 20 hours operation, only forward, no rewind. Microphone.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 314.00 $

Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.



All listed radios etc. from Dictaphone Co.; New York, Mountan View
Here you find 16 models, 16 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
